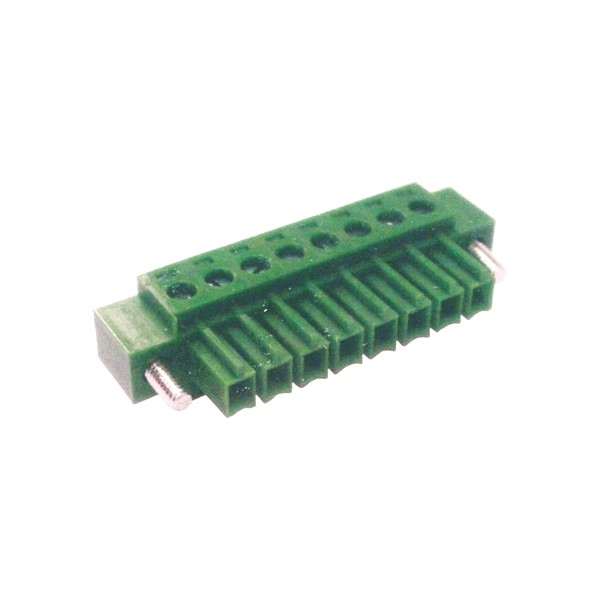

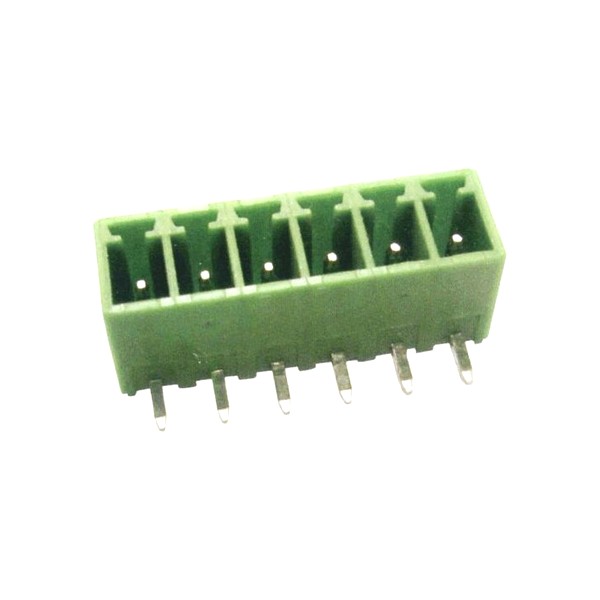

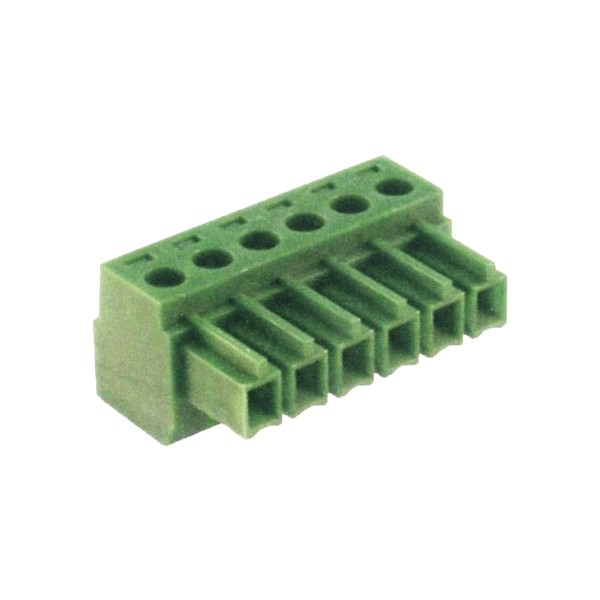

3.81mm pitch, 10A 300VAC, CBP1-381 Pluggable Terminal Blocks

CBP1-381 Series Pluggable Terminal Blocks, 3.81mm pitch, 10A 300VAC, Accepts wire range 26~16 AWG, 2- to 16-Pole Euro-Style PCB Terminal Blocks.

Quantity:
  • CBP1-381

CBP1-381 Pluggable Terminal Blocks, 3.81mm pitch, 10A 300VAC


  1. Model Number: CBP1-381

  2. Rating: 10A 300VAC

  3. Body Material: Polyamide 66, Green

  4. Contact: Phosphor Bronze, 0.3t, Nickel Plated

  5. Screw: M2.0, Steel, Zine Plated

  6. Cage clamp: Brass, 0.7t, Nickel Plated

  7. Solder Pin: 0.8mm Brass, Tin Plated

  8. Working Temperature: -40˚C to +105˚C

  9. Insulation withstand Voltage: AC2000V/min

  10. Insulation resistance: 500MΩ or more at DC 500V

  11. Wire Range: 26~16 AWG

  12. Screw Torque Value: 3kg/cm

  13. Poles: 2P~16P

  14. Pitch: 3.81mm

  15. Place of Origin: Taiwan


CBP1-381 Pluggable Terminal Blocks


Related Links: http://www.chengee.com.tw/en/products/CBP1-381.html

Catalog PDF Download Service

Catalog PDF Download Service

Please click an image thumbnail to view web catalog.

CBP1-381 Series Series Pluggable Terminal Blocks
