3.81mm pitch, 10A 300VAC, CBP2-HC381 Euro-Style PCB Terminal Blocks

CBP2-HC381 Euro-Style PCB Terminal Blocks, 3.81mm pitch, 10A 300VAC, Accepts wire range 26~16 AWG, 2- to 16-Pole Euro-Style Fixed Mount PCB Terminal Blocks.

Quantity:
  • CBP2-HC381

CBP2-HC381 Euro-Style PCB Terminal Blocks, 3.81mm pitch, 10A 300VAC


  1. Model Number: CBP2-HC381

  2. Rating: 10A 300VAC

  3. Body Material: Plastic NYLON 66, Green

  4. Screw: M2, Steel, Nickel Plated

  5. Wire Cage: Brass, 0.6t, Nickel Plated

  6. Solder Pin: Brass, 0.5t, Tin Plated

  7. Working Temperature: -40˚C to +105˚C

  8. Insulation withstand Voltage: AC2000V at 1 min

  9. Insulation resistance: 500MΩ or more at DC 500V

  10. Wire Range: 26~16 AWG

  11. Screw Torque Value: 2kg/cm

  12. Poles: 2P ~ 16P

  13. Pitch: 3.81mm

  14. Place of Origin: Taiwan

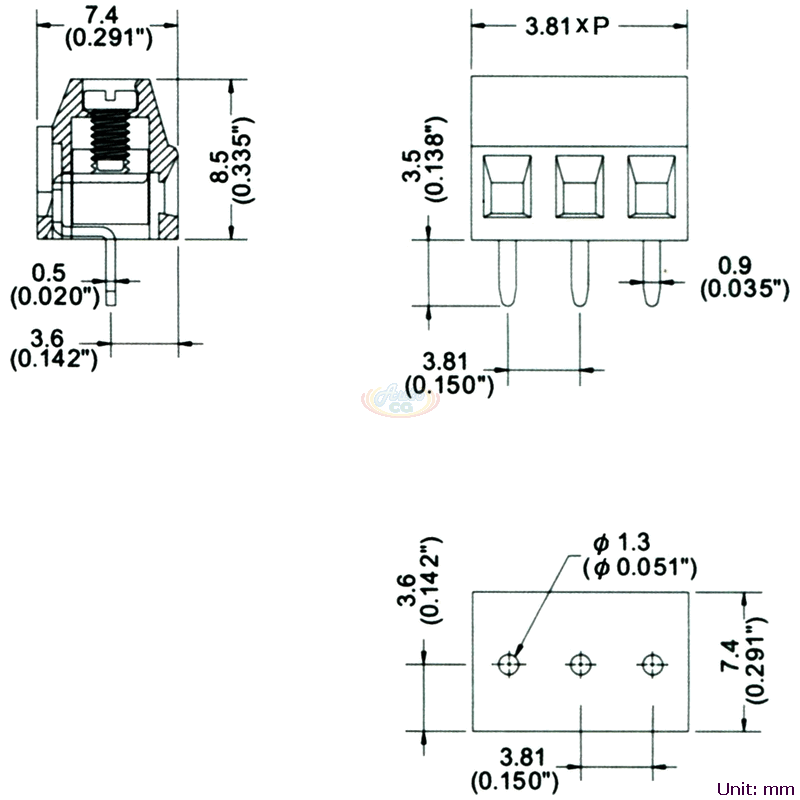

CBP2-HC381 Euro-Style PCB Terminal Blocks
