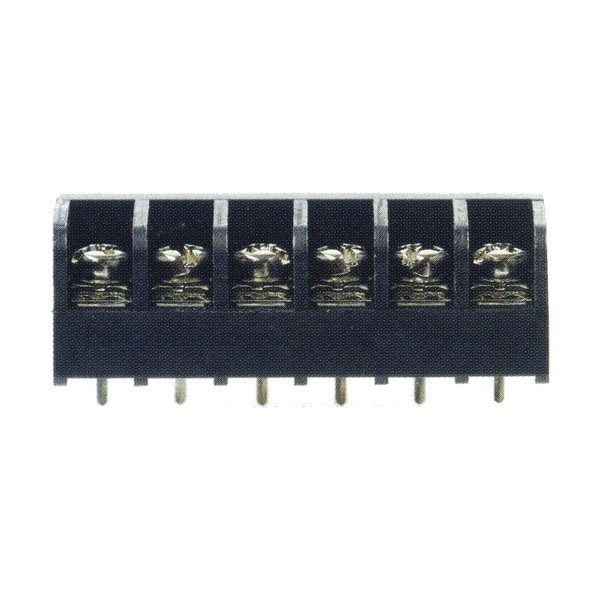

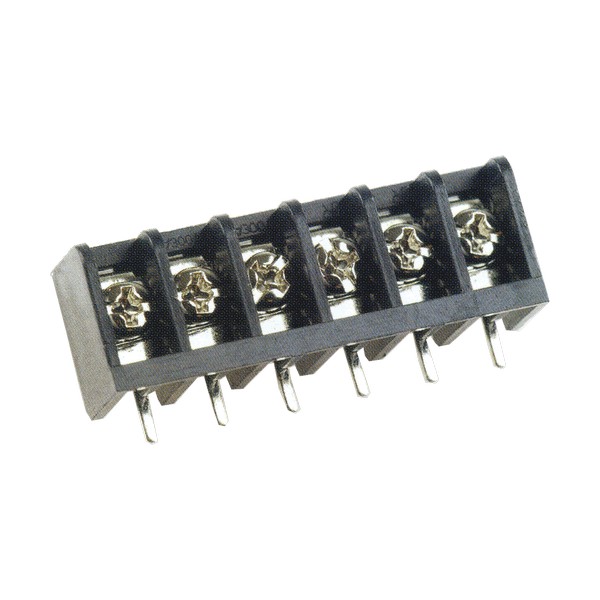

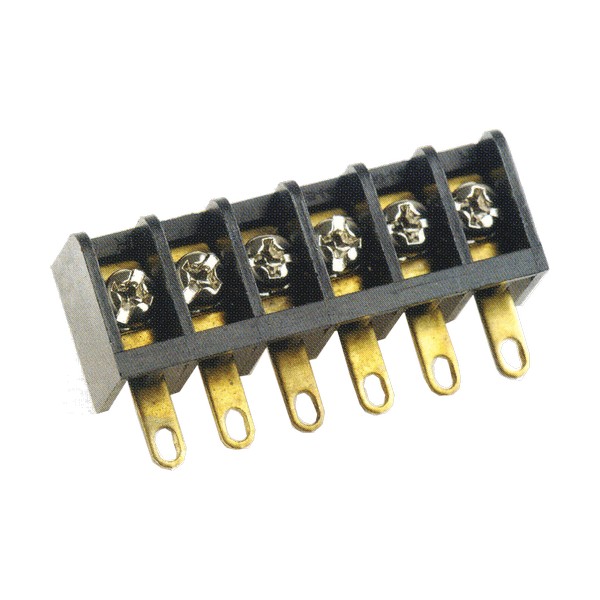

6.35mm pitch, 10A 300VAC, CBP140 Tri-Barrier Strip Terminal Blocks

CBP140 Series Tri-Barrier Strip Terminal Blocks, 6.35mm pitch, 10A 300VAC, Accepts wire range 22~12 AWG, 2- to 32-Pole Single row PCB Terminal Strip.

Quantity:
  • CBP140

CBP140 Tri-Barrier Strip Terminal Blocks, 6.35mm pitch, 10A 300VAC


  1. Product Type: Barrier Strip

  2. Barrier Style: Single Row, Tri-Barrier

  3. Model Number: CBP140

  4. Rating: 10A 300VAC

  5. Terminal: Brass, 0.8t, Tin Plated

  6. Body Material: Plastic NYLON 66, Black (UL 94V-0)

  7. Screw: Steel, M3, Nickel Plated

  8. Working Temperature: -40˚C to +105˚C

  9. Insulation withstand Voltage: AC2000V at 1 min

  10. Insulation resistance: 500MΩ or more at DC 500V

  11. Wire Range: 22~12 AWG

  12. Max. Torque Value: 10Kg/cm

  13. Poles: 2P~32P

  14. Pitch: 6.35mm

  15. Place of Origin: Taiwan


CBP140 Tri-Barrier Strip Terminal Blocks


Related Links: http://www.chengee.com.tw/en/products/CBP140.html

Catalog PDF Download Service

Catalog PDF Download Service

Please click an image thumbnail to view web catalog.

CBP140 Series Tri-Barrier Strip Terminal Blocks
