8.25mm pitch, 15A 300VAC, CBP210 Barrier Strip Terminal Blocks

CBP210 Series Barrier Strip Terminal Blocks, 8.25mm pitch, 15A 300VAC, Accepts wire range 22~12 AWG, Cover Available, 2- to 32-Pole Single row PCB Terminal Strip.

Quantity:
  • CBP210

CBP210 Barrier Strip Terminal Blocks, 8.25mm pitch, 15A 300VAC


  1. Product Type: Barrier Strip

  2. Model Number: CBP210

  3. Rating: 15A 300VAC

  4. Terminal: Brass, 0.8t, Tin Plated

  5. Body Material: Plastic NYLON 66, Black (UL 94V-0)

  6. Screw: Steel, M3, Nickel Plated

  7. Working Temperature: -40˚C to +105˚C

  8. Insulation withstand Voltage: AC2000V at 1 min

  9. Insulation resistance: 500MΩ or more at DC 500V

  10. Wire Range: 22~12 AWG

  11. Max. Torque Value: 10Kg/cm

  12. Poles: 2P~32P

  13. Pitch: 8.25mm

  14. Cover Available

  15. Place of Origin: Taiwan

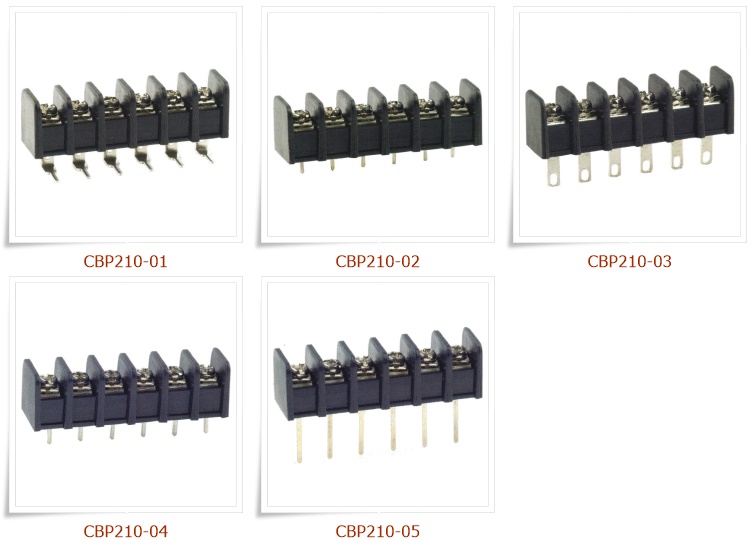

CBP210 Barrier Strip Terminal Blocks


Related Links: http://www.chengee.com.tw/en/products/CBP210.html

Catalog PDF Download Service

Catalog PDF Download Service

Please click an image thumbnail to view web catalog.

CBP210 Series Barrier Strip Terminal Blocks
