Double Row Terminal Blocks, 14mm pitch, 30A 300VAC

CB4-30A Double Row Barrier Strips, 14mm pitch, 30A 300VAC, Accepts Wire Range: 12~18 AWG, 2 to 24-Pole double row panel mount terminal blocks.

Quantity:
  • CB4-30A

CB4-30A Double Row Terminal Blocks, 14mm pitch, 30A 300VAC


Features:

  1. Barriers help prevent short circuits.

  2. Dual-Row Barrier Strips Rugged base eliminates breakage.

  3. Accepts wire Wire Range 12~18 AWG.

  4. Rated for up to 300V, 30 Amps.

  5. 14mm pitch, 2-24 Terminals, 2-row


Specification:

  1. Product Name: Double Row Terminal Blocks 30A

  2. Product Type: Barrier Strip, Double Row

  3. Model Number: CB4-30A

  4. Electrical Rating: 30A 300VAC

  5. Housing Material: Plastic NYLON 66 (UL 94V-0)

  6. Terminal: Brass, Nickel Plated

  7. Screw: Steel, M4, Nickel Plated

  8. Working Temperature: -40˚C to +105˚C

  9. Insulation withstand Voltage: AC2000V at 1 min

  10. Insulation resistance: 500MΩ or more at DC500V

  11. Wire Range: 12~18 AWG

  12. Max. Torque Value: 18Kg/cm

  13. Number of Rows: 2

  14. Number of Positions: 2-24

  15. Pitch (terminal to terminal): 14mm

  16. Place of Origin: Taiwan

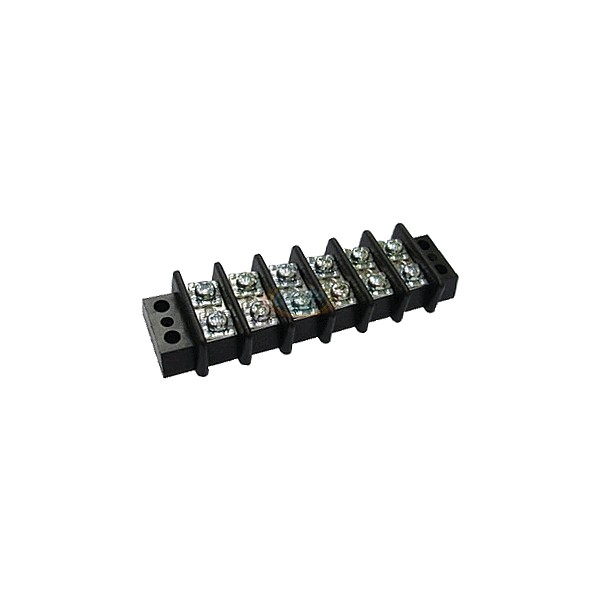

CB4-30A Double Row Terminal Blocks
