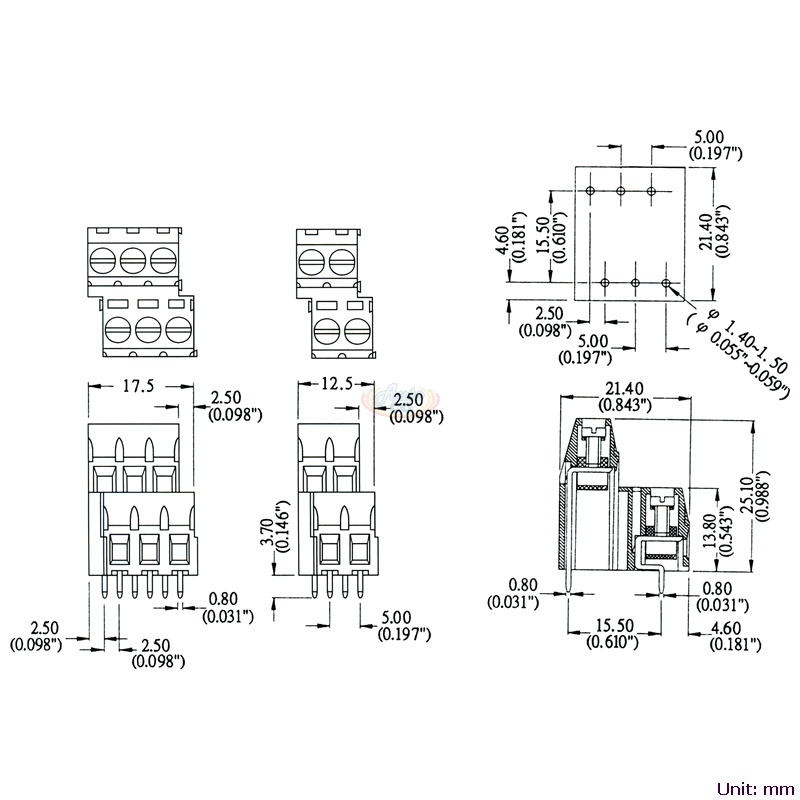

5mm pitch, 10A 300VAC, CBP2-HC100 Euro-Style PCB Terminal Blocks

CBP2-HC100 Euro-Style PCB Terminal Blocks, 5mm pitch, 10A 300VAC

1. Model Number: CBP2-HC100

2. Rating: 10A 300VAC

3. Body Material: Plastic NYLON 66, Green

4. Screw: M2.6, Steel, Zine Plated

5. Wire Cage: Brass, 0.7t, Nickel Plated

6. Solder Pin: Brass, 0.8t, Solder Plated

7. Working Temperature: -40˚C to +105˚C

8. Insulation withstand Voltage: AC2000V at 1 min

9. Insulation resistance: 500MΩ or more at DC 500V

10. Wire Range: 22~16 AWG

11. Screw Torque Value: 5kg/cm

12. Poles: 4P & 6P

13. Pitch: 5mm

14. Place of Origin: Taiwan
