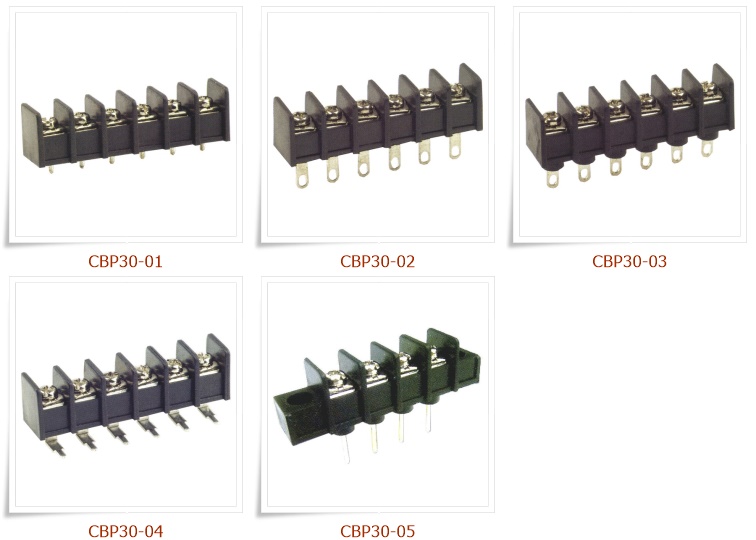

11mm pitch, 30A 300VAC, CBP30 Barrier Strip Terminal Blocks

CBP30 Barrier Strip Terminal Blocks, 11mm pitch, 30A 300VAC

1. Product Type: Barrier Strip

2. Model Number: CBP30

3. Rating: 30A 300VAC

4. Terminal: Brass, 1.0t, Tin Plated

5. Body Material: Plastic NYLON 66, Black (UL 94V-0)

6. Screw: Steel, M4, Nickel Plated

7. Working Temperature: -40˚C to +105˚C

8. Insulation withstand Voltage: AC2000V at 1 min

9. Insulation resistance: 500MΩ or more at DC 500V

10. Wire Range: 22~12 AWG

11. Max. Torque Value: 18Kg/cm

12. Poles: 2P~29P

13. Pitch: 11mm

14. Cover Available

15. Place of Origin: Taiwan
