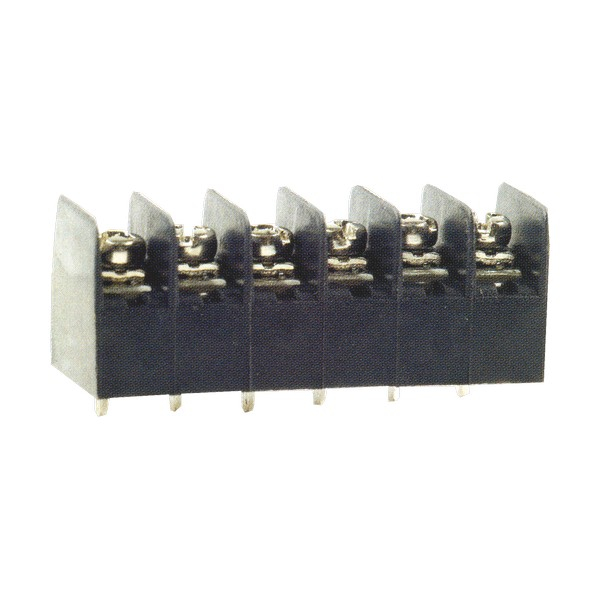

6.35mm pitch, 10A 300VAC, CBP60 Barrier Strip Terminal Blocks

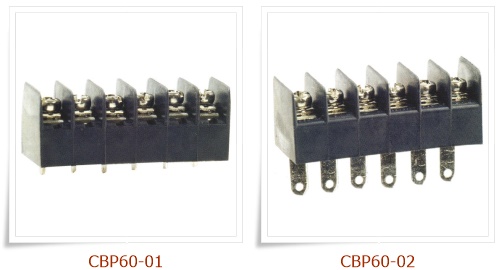

CBP60 Barrier Strip Terminal Blocks, 6.35mm pitch, 10A 300VAC

1. Product Type: Barrier Strip

2. Model Number: CBP60

3. Rating: 10A 300VAC

4. Terminal: Brass, 0.8t, Tin Plated

5. Body Material: Plastic NYLON 66, Black (UL 94V-0)

6. Screw: Steel, M3, Nickel Plated

7. Working Temperature: -40˚C to +105˚C

8. Insulation withstand Voltage: AC2000V at 1 min

9. Insulation resistance: 500MΩ or more at DC 500V

10. Wire Range: 22~12 AWG

11. Max. Torque Value: 10Kg/cm

12. Poles: 2P~32P

13. Pitch: 6.35mm

14. Place of Origin: Taiwan
